Engine Drive

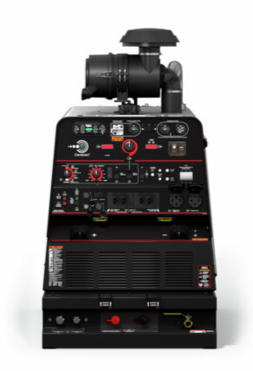

Air Vantage® 566X Hydraulic (Deutz®) K4343-4
Excellent, all-around welder/generator with integrated 60 cfm air compressor and 14 gpm hydraulic
pump. Capable of up to 600 amps of DC multi-process welding, 120/240 VAC single phase, and 240 VAC
three phase auxiliary power. Powered by a 65.7 hp Deutz® TD2.9L4 diesel engine and features patented Chopper Technology® and CrossLinc® Technology.

The Air Vantage® 566X Hydraulic is the ultimate utility machine. This versatile and powerful
machine boasts a 575  amp welder, 20 kW generator, 60 cfm air compressor, and 14 gpm hydraulic pump
to combine as a truly epic 4-in-1 workhorse. Suited for the most challenging job sites, the rugged
Air Vantage 566X Hydraulic can handle a wide array of unique tasks from heavy-duty carbon arc
gouging, powering industrial tools, or running a hydraulic crane. Now better than over, the machine
features CrossLinc® Technology to provide welders with greater control at the arc to help improve
safety, productivity, and quality. Select this multifunctional workhorse for your next job!

Features
The Ultimate Utility Machine – Offers up to 600 amps (IEC rated at 525 amps) of welding current to
tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes
including CC- Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which
maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
Generator Output – Provides up to 20 kW of continuous three-phase power to run industrial tools
such as plasma cutters, pumps, or inverter welders.
Integrated Air Compressor with Built-In Rope Heater – 60 cfm @ 100 psi of compressed air powered by
VMAC®

Built-in Hydraulic Pump – 14 gpm @ 3000 psi

Patented Chopper® Technology – Experience premium arc performance with minimized spatter for stick
or pipe welding as well as enhanced gouging performance that prevents the engine from stalling,
resulting in smooth material removal.
Expanded Welding Capabilities – Utilize customized modes for stainless, aluminum, and steel as well
as advanced SAW and orbital pipe modes. Features pulse welding capability for better arc control in
out-of-position work and low heat input for critical welds.

CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or
current control at the arc without a control cable to help improve safety, quality, and
productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage
Technology™ (TVT) compensates for voltage drop to further improve operations.
Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the
most challenging job site needs and harshest environments.
Industrial Diesel Engine – Powered by a 65.7 hp, turbocharged Deutz® diesel engine. Runs smooth and
quiet while meeting EPA Tier 4 Final compliance.

What's Included
Machine Only

Specifications
Product Weights & Dimensions
Dimensions (H x W x D)                  42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm)
Net Weight                         1800 lbs (816 kg)

Machines Processes                    Stick (SMAW)
Gouging (CAC-A) TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW)
IEC Rating                         525A / 41V / 100% @ 104°F (40°C)
Max Rating                         600A / 40V / 60% @ 104°F (40°C)
600 Amps
(CC): 40 –350 Amps
Touch Start TIG: 20 – 350 Amps CV-Wire: 10 – 45 Volts
Arc Gouging: 60 – 600 Amps
Open Circuit Voltage                    66 Peak OCV @ 1800 RPM
Air Vantage® 566X Hydraulic (Deutz®)
Rated Gouging Carbon Diameter             3/8" (9.5 mm)
Machines Communication Technology           CrossLinc ArcLink
Engine Driven Welders
Single Phase Auxiliary Output               12,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output               20,000 Watts Continuous, 240V
Auxiliary Output Frequency                60 Hz
Receptacle Types                      NEMA 5-20R
NEMA 14-50R NEMA 15-50R
Engine Brand & Model                   Deutz® TD2.9L4
Engine Description                     4 Cylinder Turbocharged Water Cooled Diesel Engine
Engine Horsepower                    65.7 hp (49.0 kW)
Engine Block Size & Displacement             178 cu. in. (2.9 L)
Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm)
Emissions Rating                      US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output        1800
Low Idle Operating Speed                 1525
Fuel Tank Size (US gal.)                   25 US gal.
Fuel Tank Size (L)                      94.6 L
Oil Capacity (qts.)                     9.0 qts.
Oil Capacity (L)                       8.5 L
Coolant Capacity (L)                     9.5 L
Air Compressor Brand/Model               VMAC® S700162
Air Compressor Description                Belt
Rotary Screw
Air Compressor Output                  60 cfm @ 100 psi (1.7 cmm @ 6.9 bar)
Air Compressor Max System Pressure           150 psi (10.3 bar)
Air Compressor Protections                Safety Relief Valve High Temp Shutdown
Air Compressor Oil Capacity (US gal.)           1.1 US gal.
Air Compressor Oil Capacity (L)               4.0 L
Hydraulic Pump Brand/Model               Marzocchi® GHP2A
Hydraulic Pump Description                Cast Iron Gear Belt-Driven with 12 Volt Electro-clutch
Hydraulic Output (High Idle)                14 gal/min @ 3000 psi (53 L/min @ 20.7 Mpa)
Hydraulic Pump Fitting (Inlet)                SAE16, 37° JIC Male Flare
Hydraulic Pump Fitting (Outlet)               SAE10, 37° JIC Male Flare
Application
Typical Application
Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore
Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding

Warranty
3 Years Parts and Labor - Engine warranted separately by engine manufacturer. Compressor warranted separately by compressor manufacturer

LINCOLN Air Vantage® 566X Hydraulic (Deutz®) K4343-4

WELDER / GENERATOR

AIR COMPRESSOR HYDRAULIC PUMP
