REMCON ASSOCIATES, LLC

NEW ERIE STRAYER MG-12CP STOCK PAVING PLANT

AVAILABLE 1ST HALF OF JANUARY

Plant Specifications

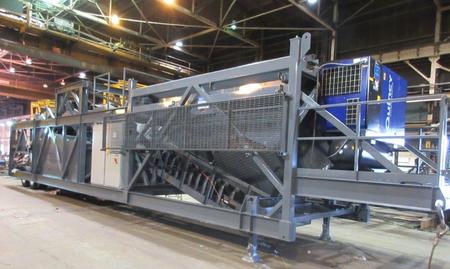

Aggregate Travel Frame

Motor control panel on right hand side

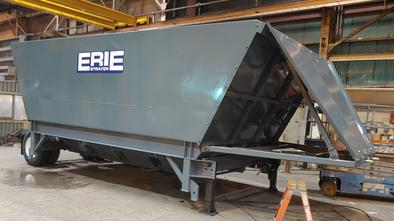

Aggregate Bin
80 cu yd
Four-compartment
Pattern A-1111
Bin extension
Running gear
Polarmatic moisture sensor mounting bracket on each compartment

Aggregate Batcher
12 cu yd cumulative
Telescopic test weight hangers
Two discharge gates

Batch Transfer Conveyor
48” x 50’-0”
75 HP TEFC motor
Belt with vulcanized splice
Emergency stop cord on one side

Cement Travel Frame
Cement SiloPlant Specifications

Aggregate Travel Frame

Motor control panel on right hand side

Aggregate Bin
80 cu yd
Four-compartment
Pattern A-1111
Bin extension
Running gear
Polarmatic moisture sensor mounting bracket on each compartment

Aggregate Batcher
12 cu yd cumulative
Telescopic test weight hangers
Two discharge gates

Batch Transfer Conveyor
48” x 50’-0”
75 HP TEFC motor
Belt with vulcanized splice
Emergency stop cord on one side

Cement Travel Frame

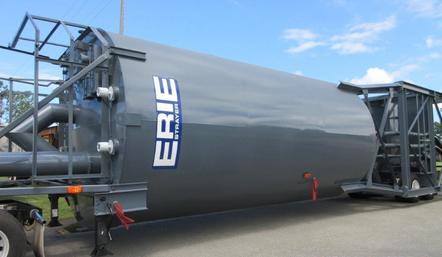

Cement Silo
CS2-715 two-compartment cement silo split approximately 1/3 – 2/3
High & low level indicators per compartment
(6) 5” dia air loading pipes (four and two)
16” dia internal dust duct
3” dia cement dust return line
4” dia pipe cleanout per compartment
Ladder & safety cable to silo roof

Cement Batcher
12 cu yd cumulative
Telescopic test weight hangers
Bolted, removable access hatch
Dust duct connection

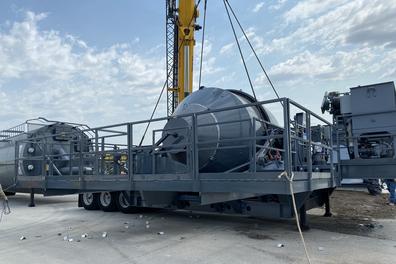

ERIE Tilting Mixer
12 cu yd
(2) 75 HP TEFC drive motors & planetary gear reducers
60 HP TEFC hydraulic pump drive motor
High profile, heavy duty “Duroxite” buckets & blades
1” thick polyurethane liners
Automatic lubrication system for mixer bull gear
Manual central grease system
Mixer parts (Pinion gears, main roller assemblies, edge roller assemblies)
Tri-axle trailer with platforms
Mixer support with hinged extension

Mixer Charging Chute
16” dia dust duct connection
Standard polyurethane liners
(6) 1” admix connections

Pivoting Mixer Nose Plug
Right or left hand
Nose plug for 30 1/2” opening
Air cylinder, air kit, air push-lock tube with quick disconnects

Concrete Directional Chute
3/4” polyurethane liners
Cantilevered supports
Paving-style service walkways

Water Storage Tank
4000 gallon
20 HP TEFC water pump
4” electromagnetic water flow meter

Air Compressor (25 HP TEFC)
Aeration Blower (5 HP)
Plant Motor Control Panel
Plant Wiring
Mixer Wiring
Main Junction Box: To accommodate Liberty Series Computer Control System or competitor’s system
Paint: ERIE Dark Gray 2020 (#67884 / PPG #920512)
